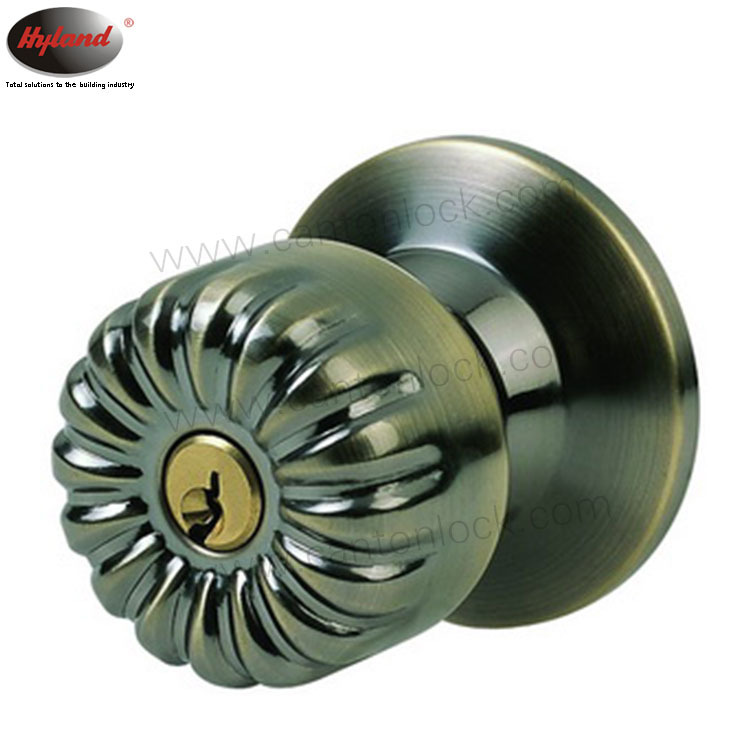

CERRADURAS Y PASADORES / Round knobs lock / Cerradura Tipo Pomo

MODEL:586 ABET

Light duty cylindrical lock

Material:Stainless steel

Introduction

* cylindrical lockset have an ideal economical choice for standard residential use.

* Guarantee for over 200000 life cycles.

* Can be keyed alike to deadbolt series to maximize security.

* Can be keyed alike in a group to enhance convenience.

* Can be master keyed in a simple combination for corrosion resistance.

* Can be master keyed in a simple combination for family and facility use.

* Solid steel chassis and latch case, zinc plated for corrosion resistance.

* Exposed trim is made of zinc die-casting electroplated or solid brass.

* 5-pin tumbler cylinder, brass plug with 2 nickel -plated brass keys.

Features

*  Latch Bolt

  1/2＂（12mm）throw latch.

  Dead locking for keyed functions.

*  Door Thickness

  Adjustable 1-3/8＂ to 2＂（35mm to 50mm）.

*  Backset

  Standard 2-3/8＂ （60mm）.

  2-3/4＂（70mm） and 3-9/16＂（90mm） also available upon request.

*  Handing

  Fully reversible for left or right hand door.
