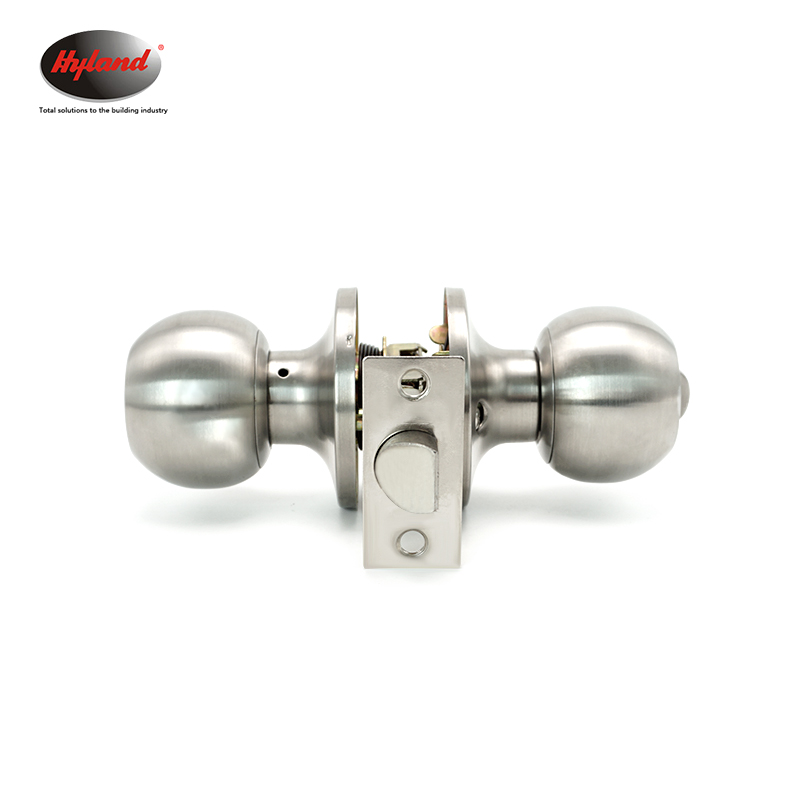

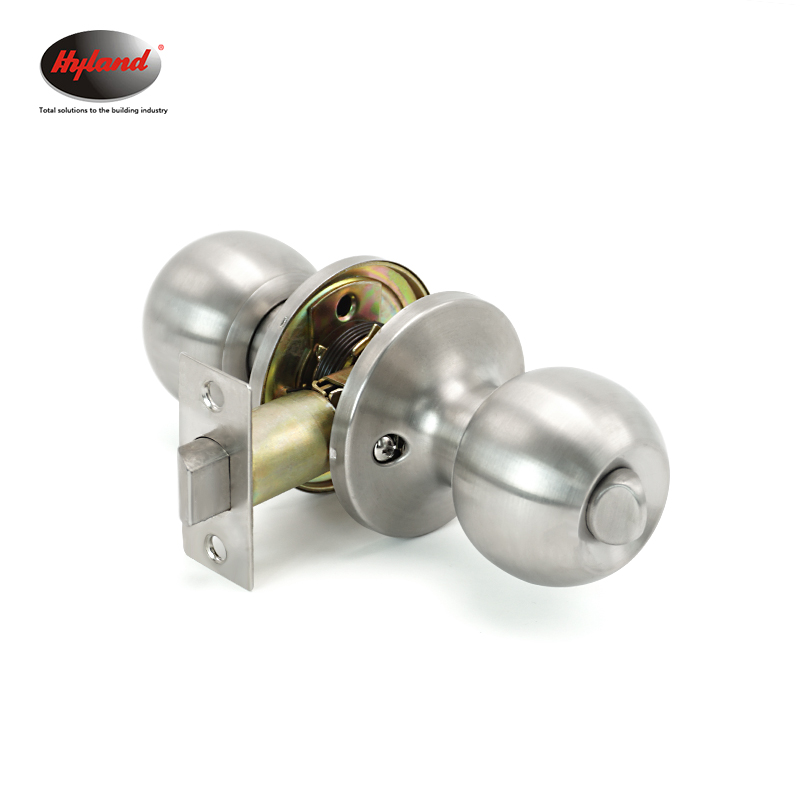

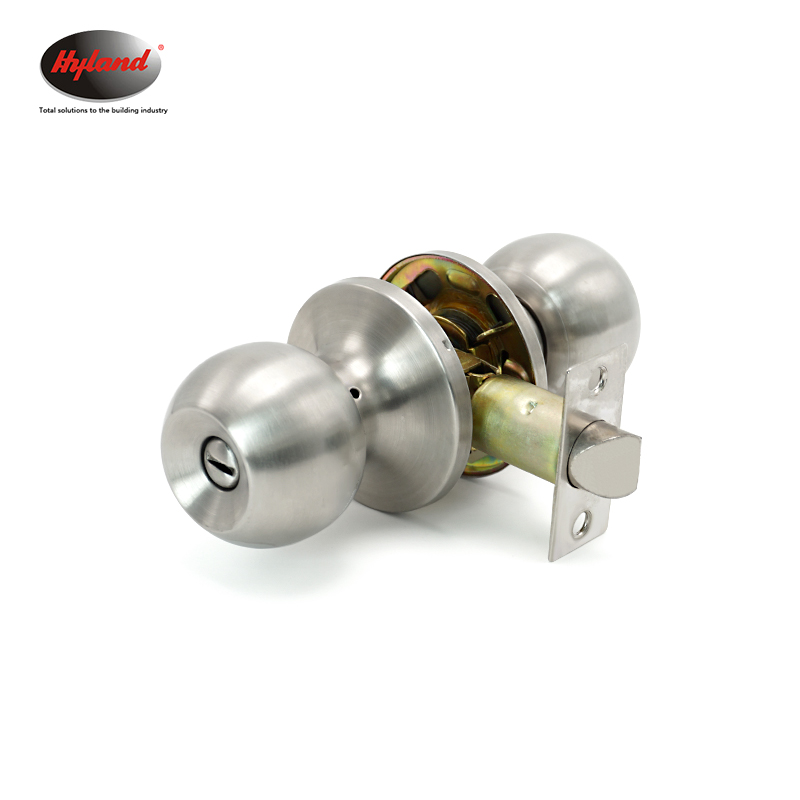

CERRADURAS Y PASADORES / Round knobs lock / Cerradura Tipo Pomo

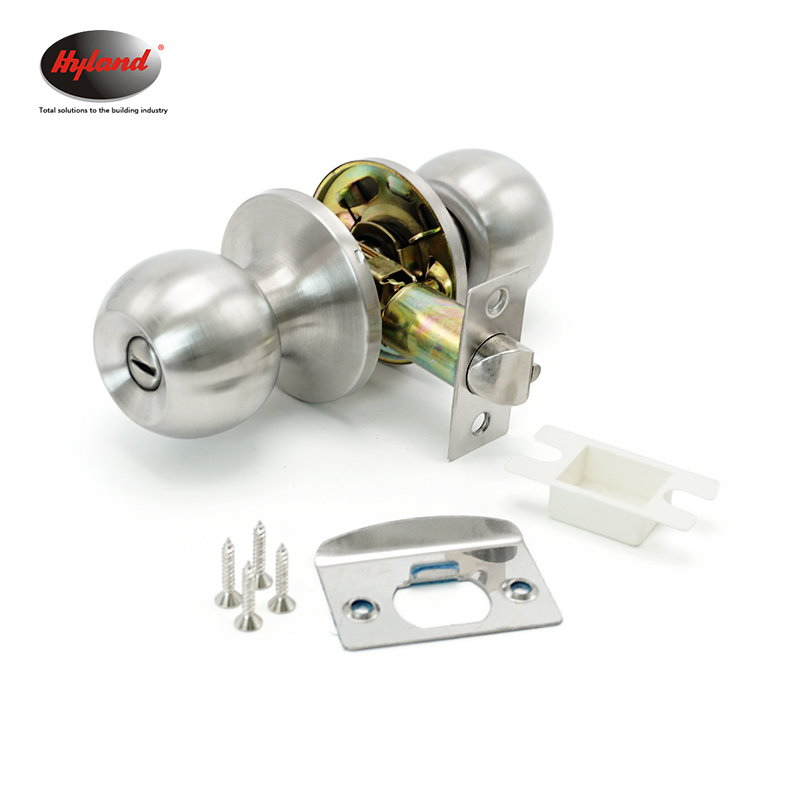

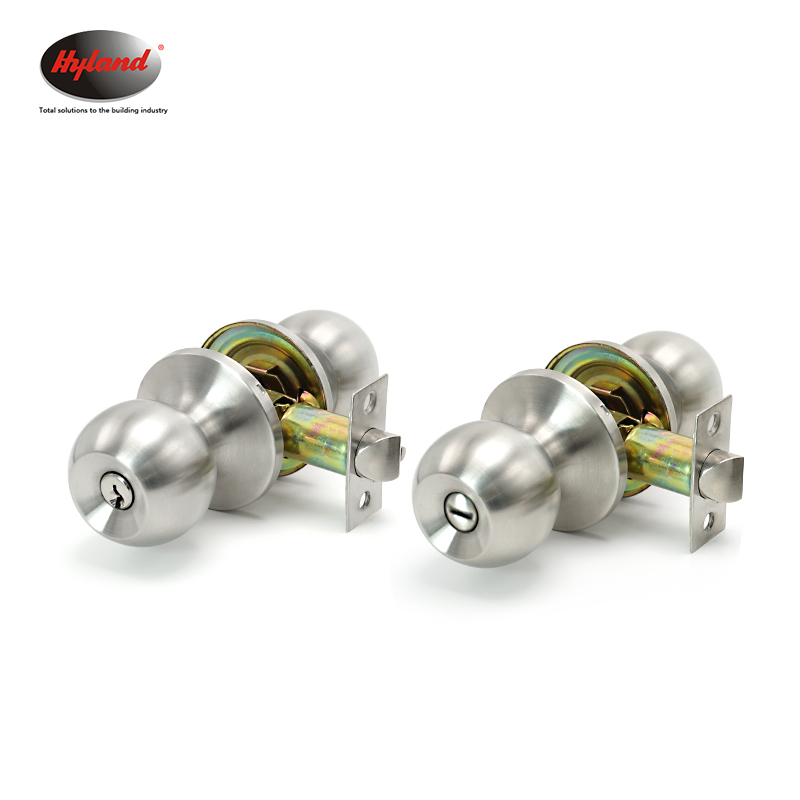

Tubular Lock

Material:Stainless steel/Brass/Solid steel

Cylinder:Brass cylinder

Latch:Adjustable 60-70mm

Quality Standard:ANSI GRADE 3

Introduction

* Tubular lockset is an economical and easy to install product particularly adaptable for residential use.

* Guarantee for over 200000 life cycles.

* Can be keyed alike with deadbolts to improve security.

* Can be master keyed in a simple combination for family and facility use.

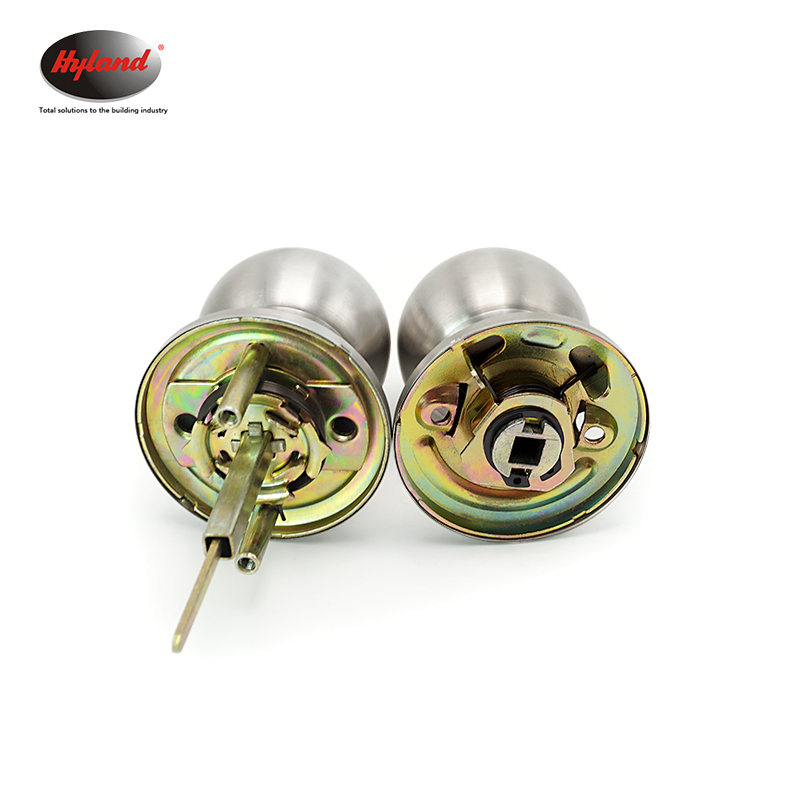

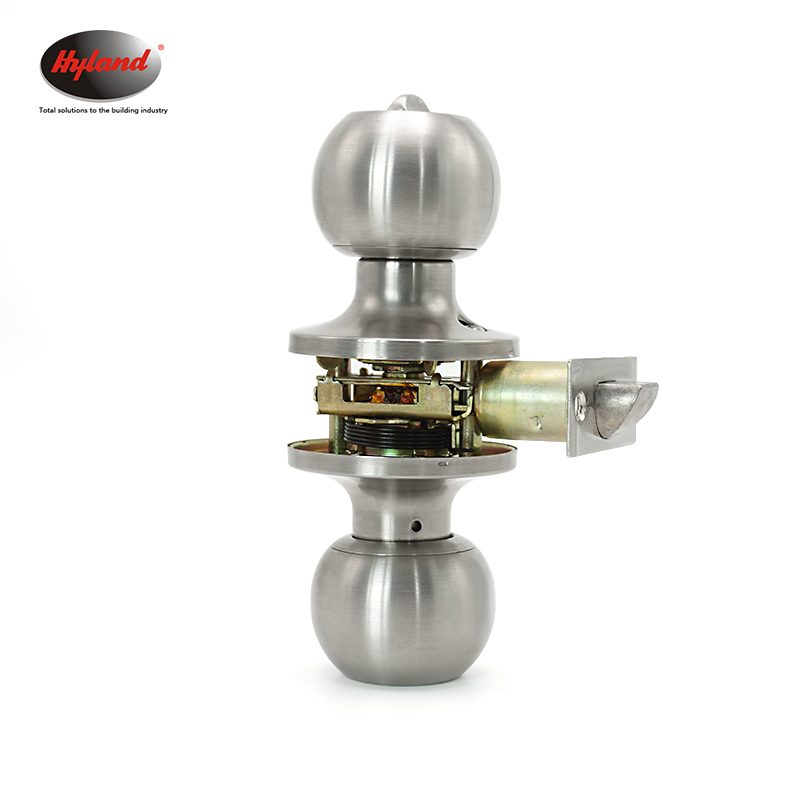

* Solid steel chassis and latch case, zinc plated for corrosion resistance.

Features

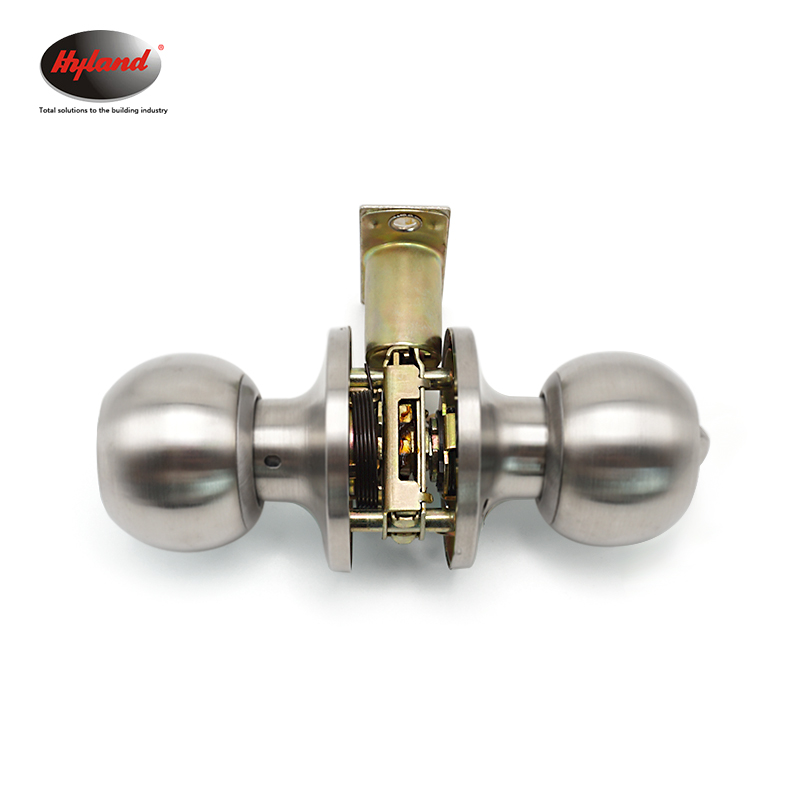

*  Latch Bolt

  1/2＂（12mm）throw latch.

  Dead locking for keyed functions.

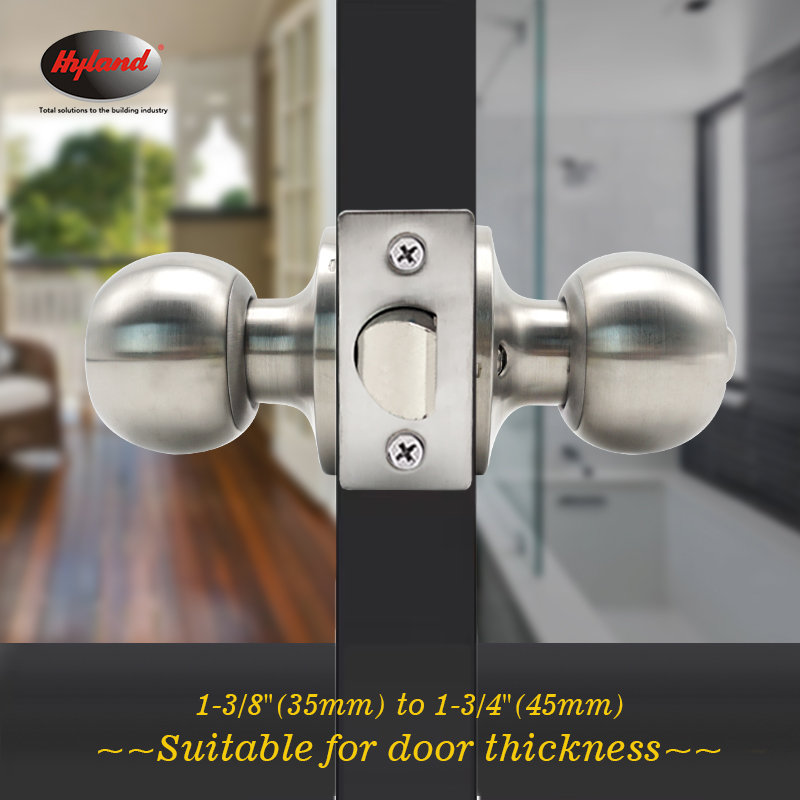

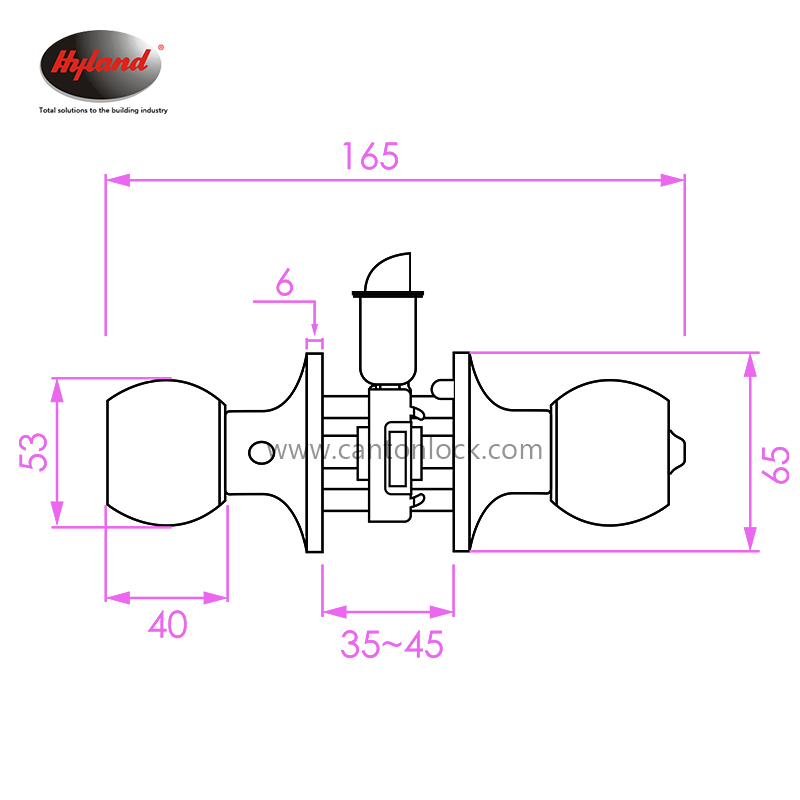

*  Door Thickness

  Adjustable 1-3/8＂to 1-3/4＂(35mm to 45mm)as standard..

*  Backset

  Adjustable backset 2-3/8＂or  2-3/4＂（60mm/70mm）as standard.

  Adjustable 1”round drive-in 4-way latch is available upon request.

  2-1/4＂(57mm) curved lip strike as standard.

  2-3/4＂(70mm) strike available upon request.

*  Handing

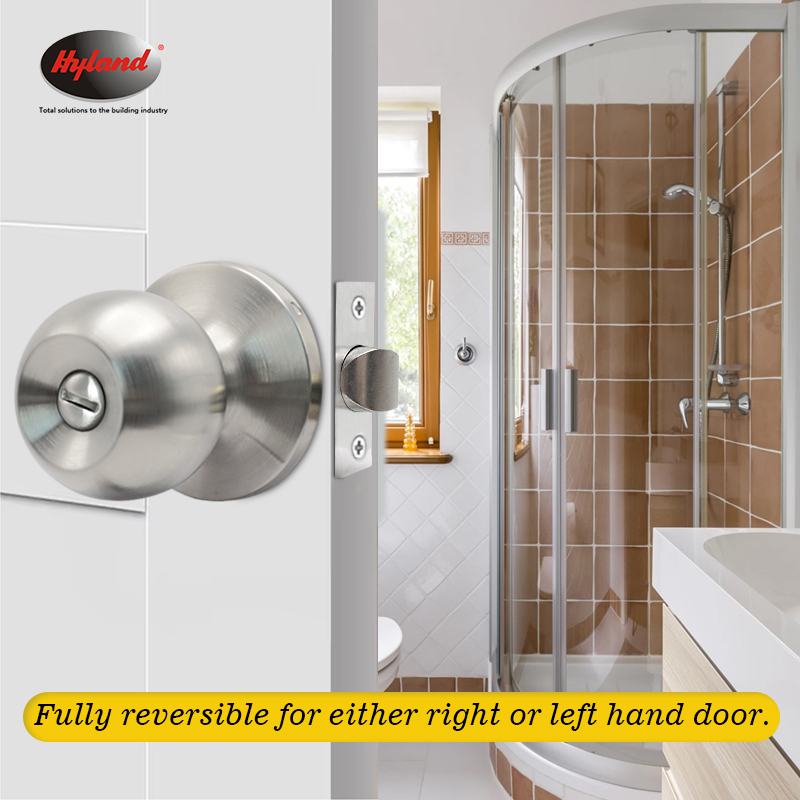

  Fully reversible for left or right hand door.
