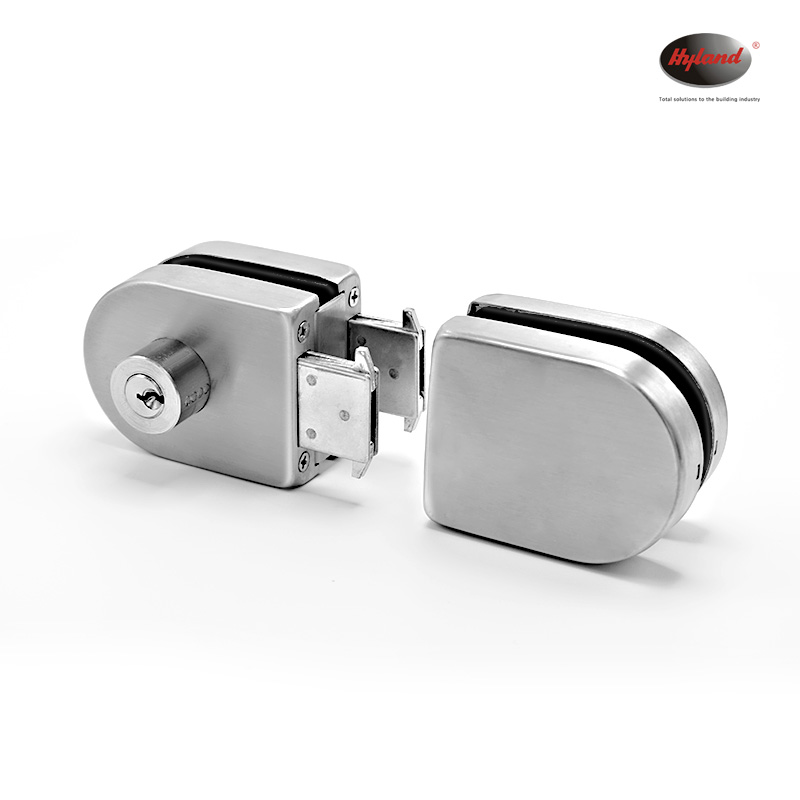

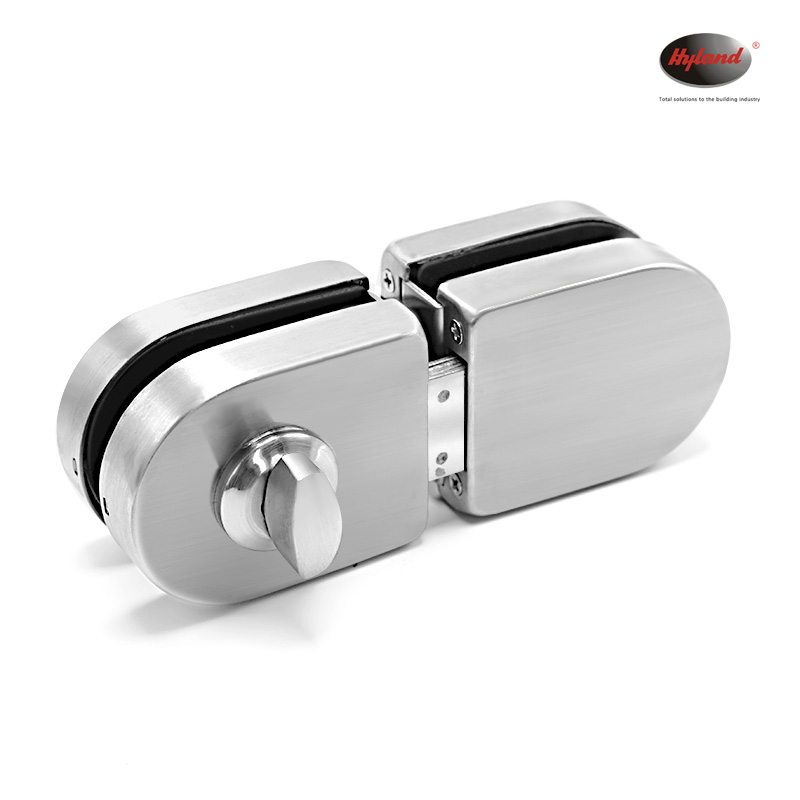

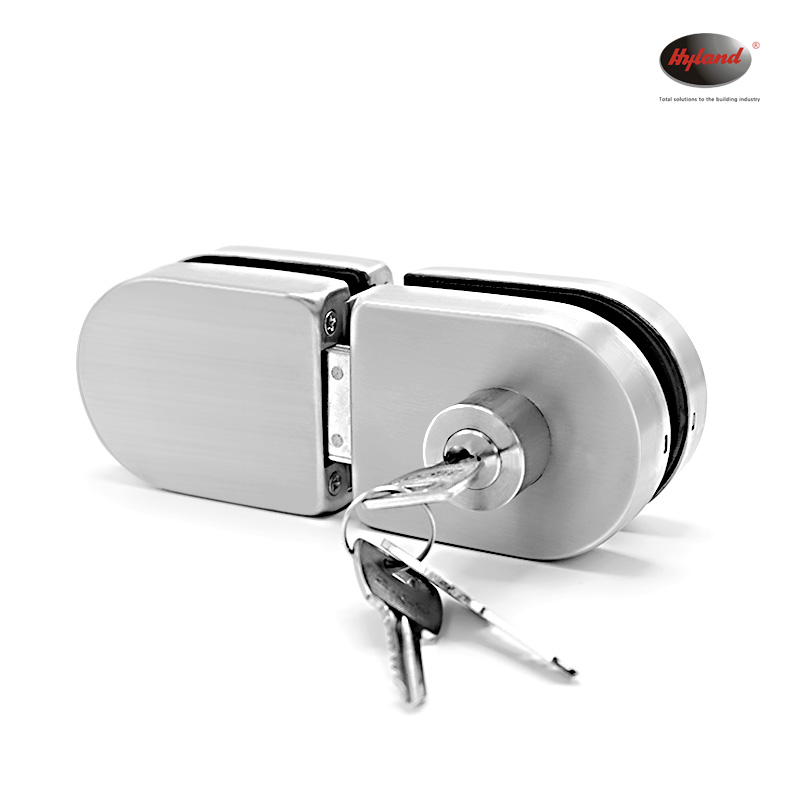

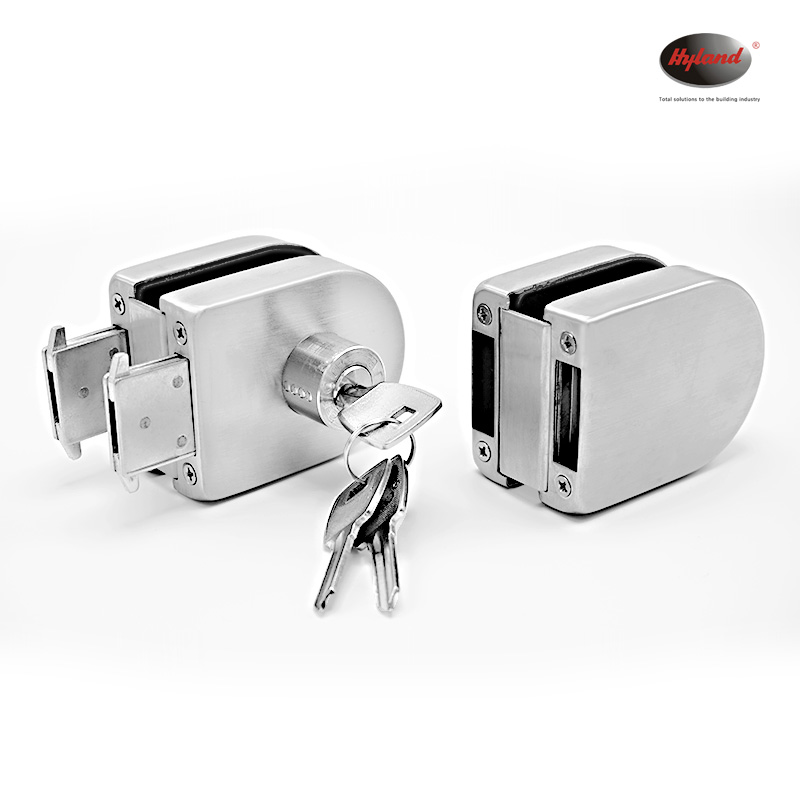

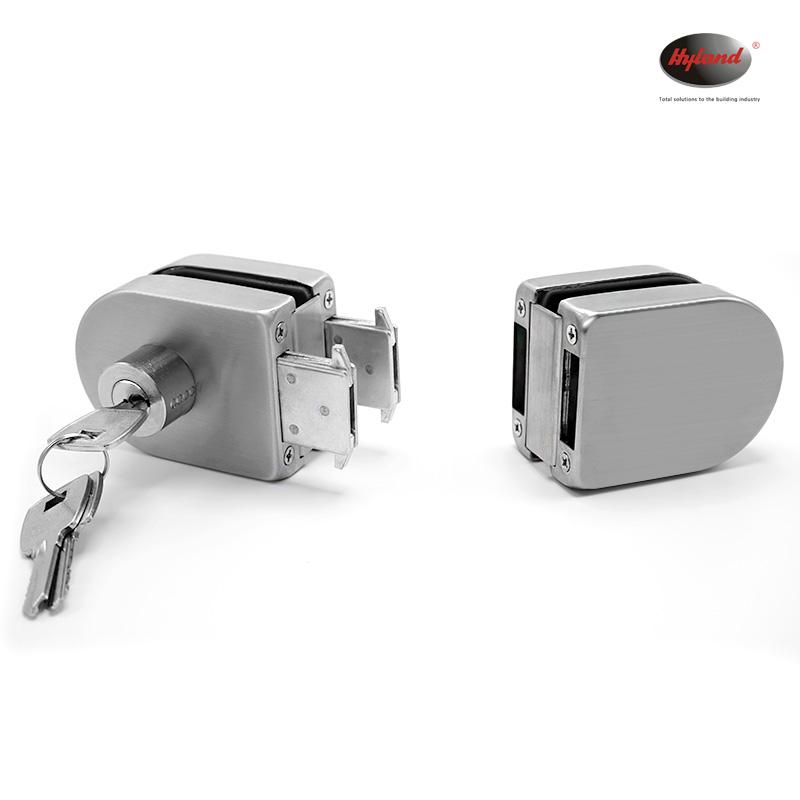

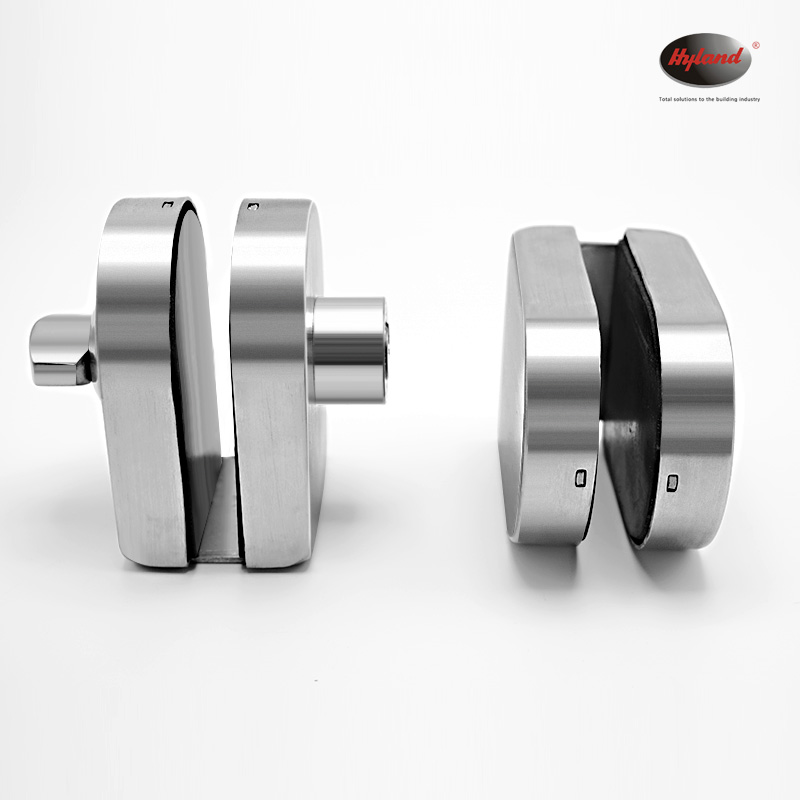

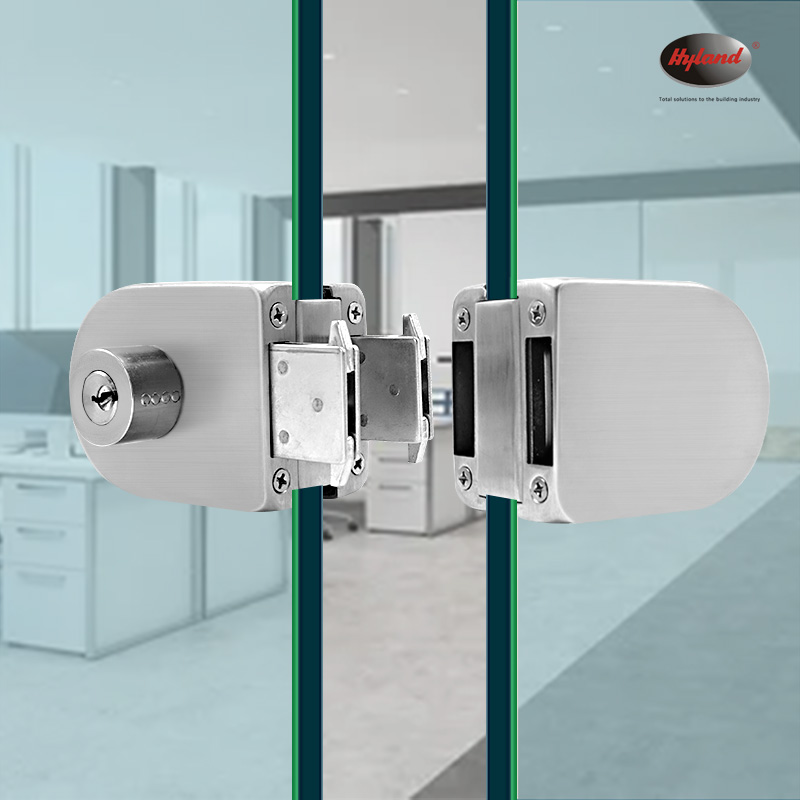

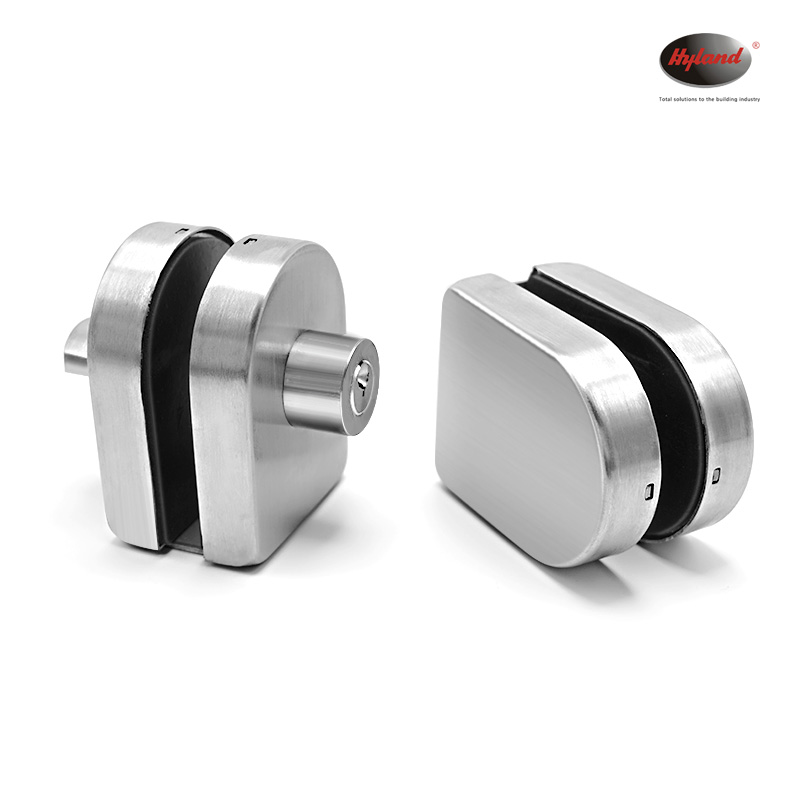

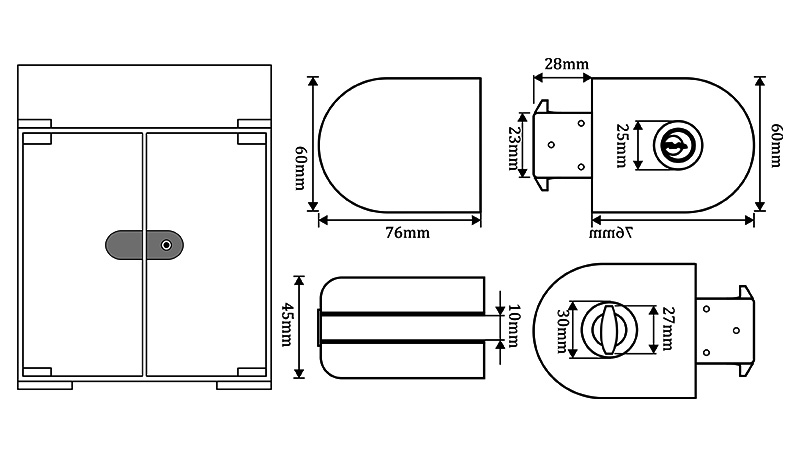

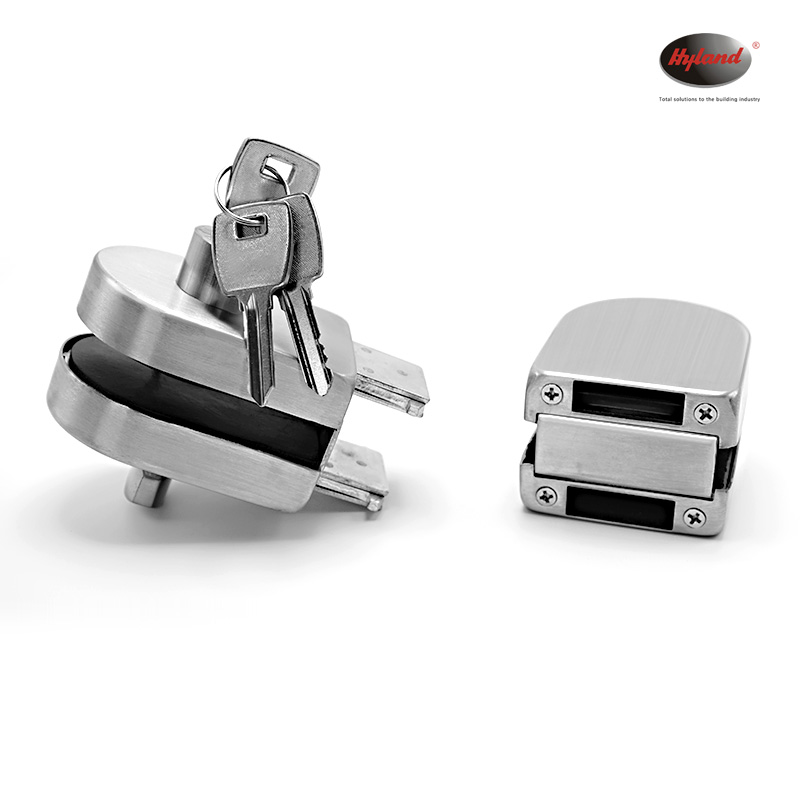

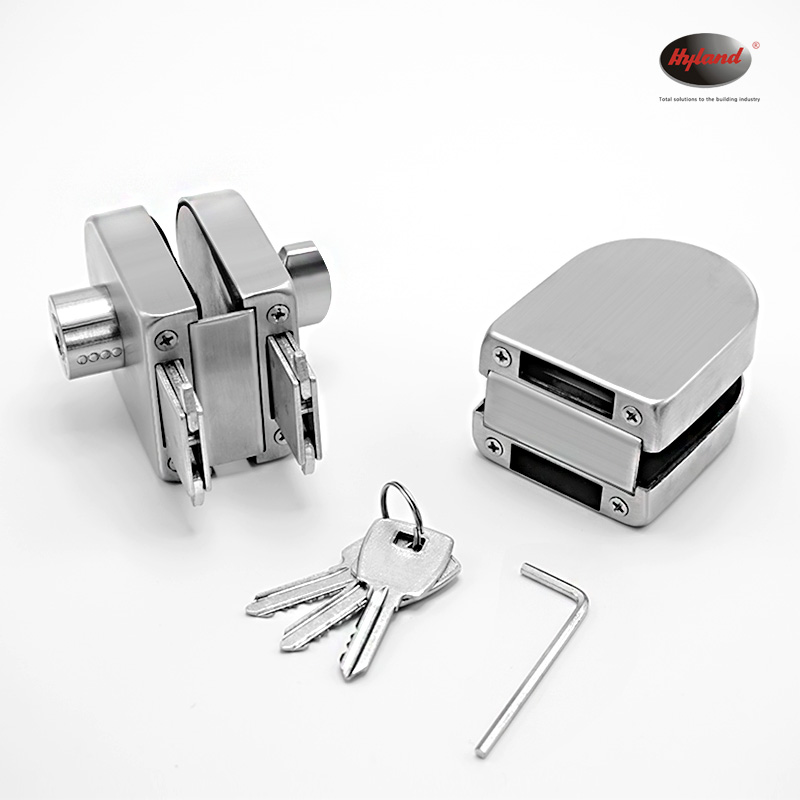

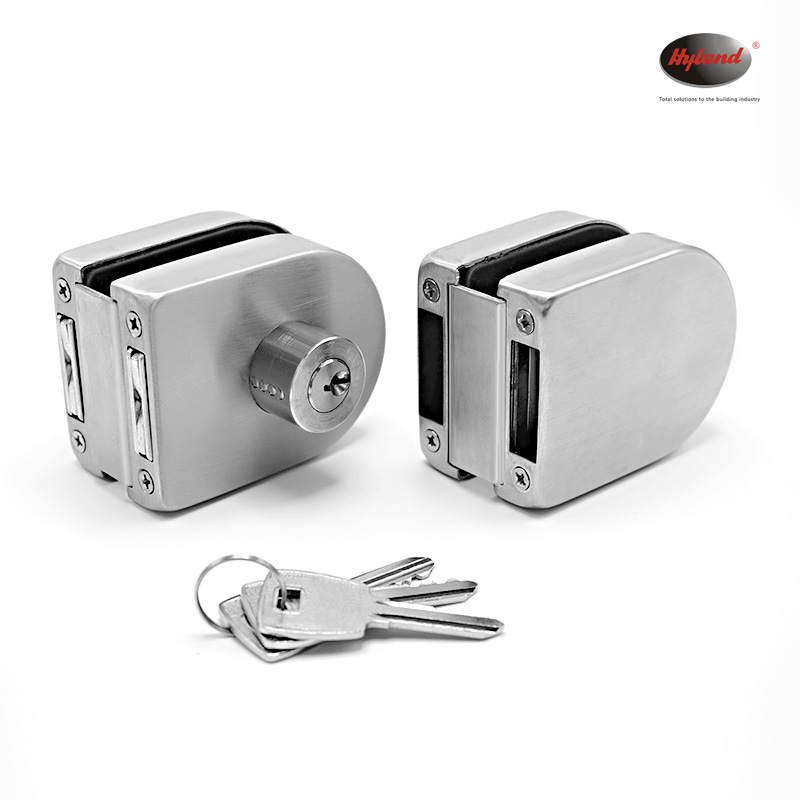

MODEL:GL125 SS

CLASS DOOR DOUBLE DOOR LOCK

Main body: Stainless steel 304

Inner body: Stainless steel 201

Deadbolt: Steel

Finish: SS

Glass door thickness: 8-10 mm

Cylinder material: Brass

Key material: Nickel plated

Model: Double door

Unit weight：900 g

Application：Suitable for left & right usage

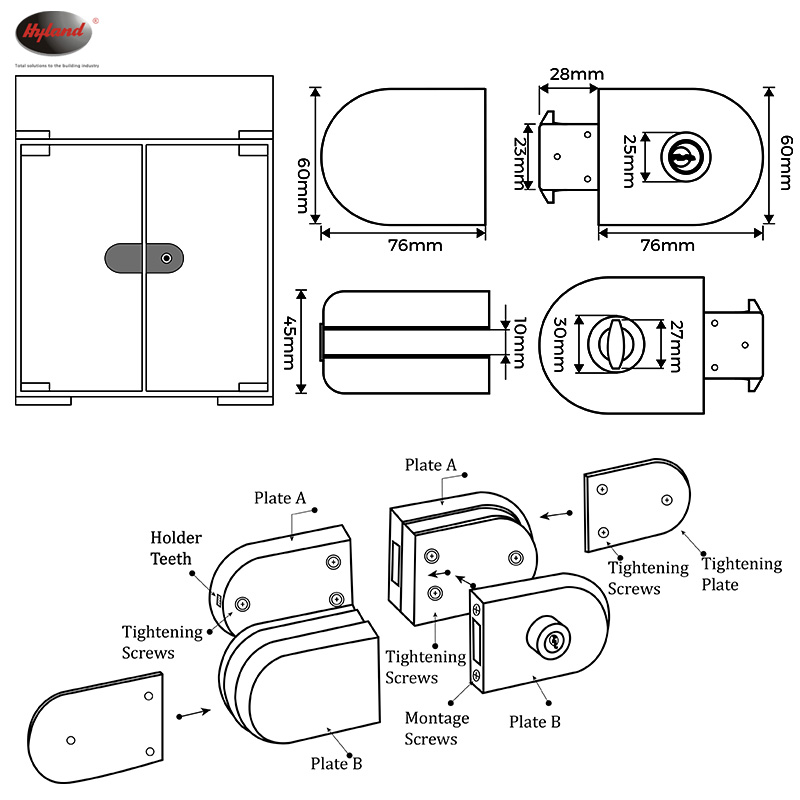

Product Installation

This lock is suitable for 8 ~ 10 mm thickness of glass door.

There is no need to drill a hole or cut on the door when installation.

*Before installation clean the surfaces where is lock installed with a wet towel.

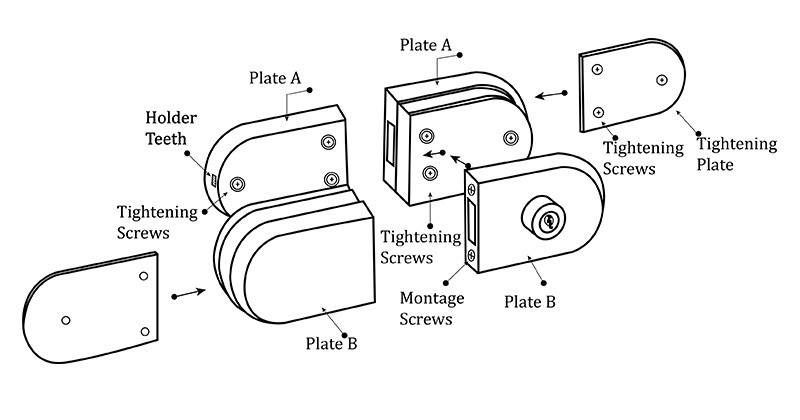

*A right position should be chosen to fix this lock when user installing the lock. After checking lock tongue that can open and close smoothly, do make the installation by using clamp plates..User can reverse or release the screws on the Plates A until the lock is firmly pasted to the glass door.

After the installation of Plate A into the door, do attach the Plate B according to the below picture bypushing forward firmly after attaching the holding teeth firstly at the back of Plate A. When 2 platesattached tighten Plate B by using 2 screws.
